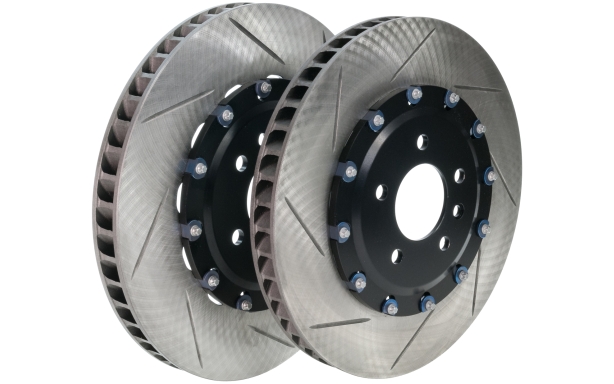

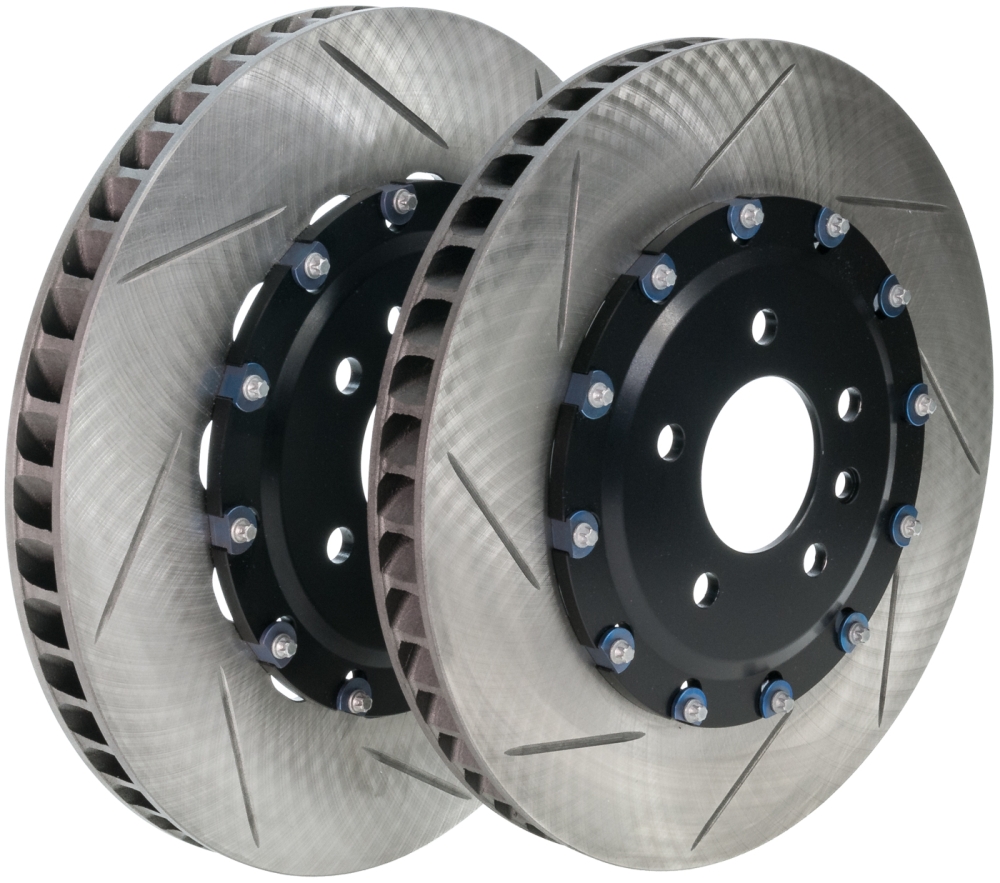

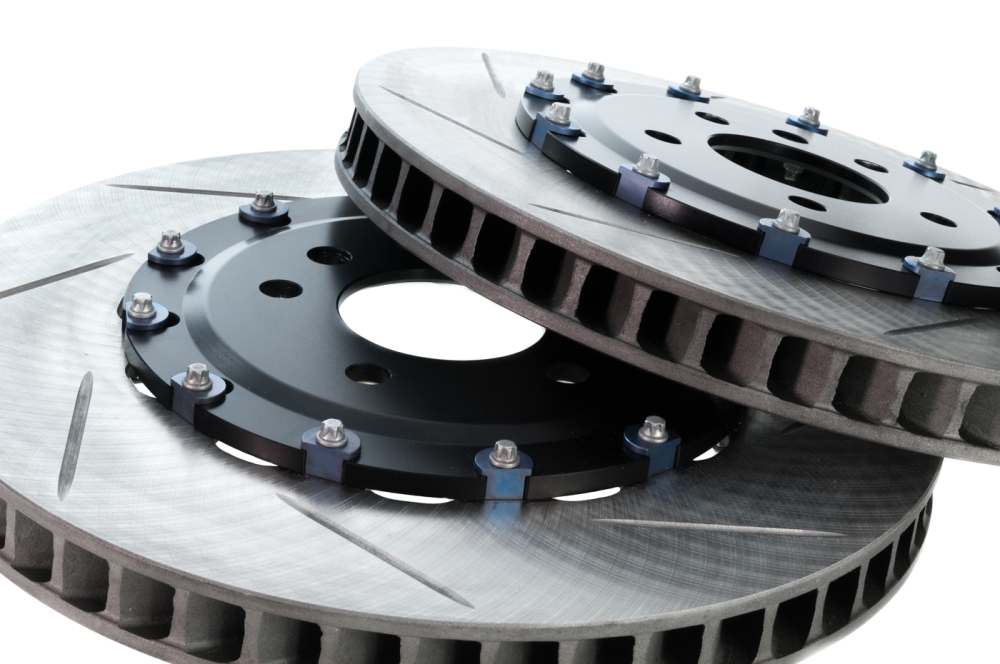

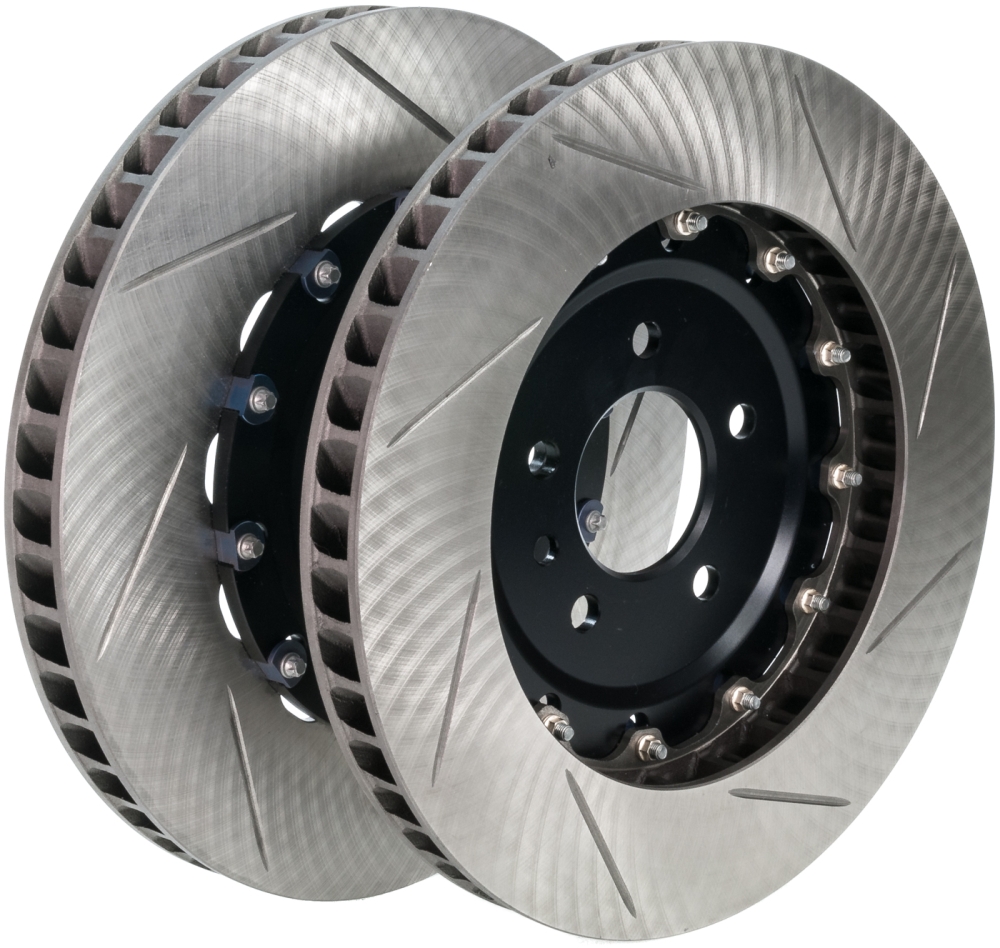

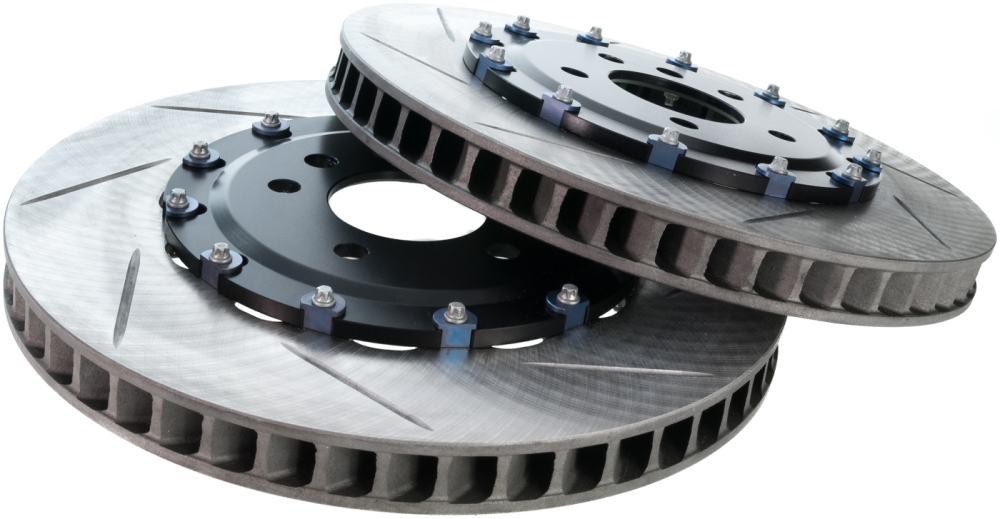

343mm V6 Front fully Floating Brake Discs
Be the first to write a review
343mm AP Equivalent Front Floating Brake Discs for the V6 Exige.
Developed specifically to suit the Lotus range with improved areas such as air gaps, curved vanes and wall thicknesses, these are 11mm larger than standard Lotus discs yet almost 1kg lighter per disc.
The standard Lotus V6 Discs are 332mm diameter, we have increased the diameter to the largest that will still fit comfortably within the 18" Lotus wheel.

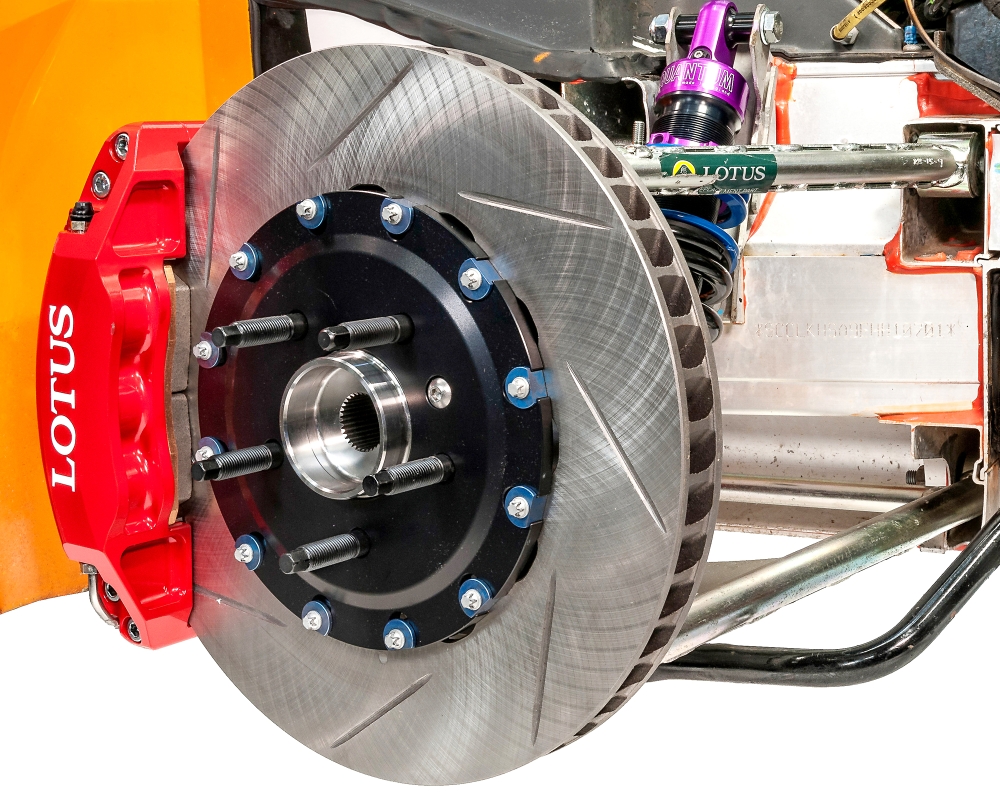

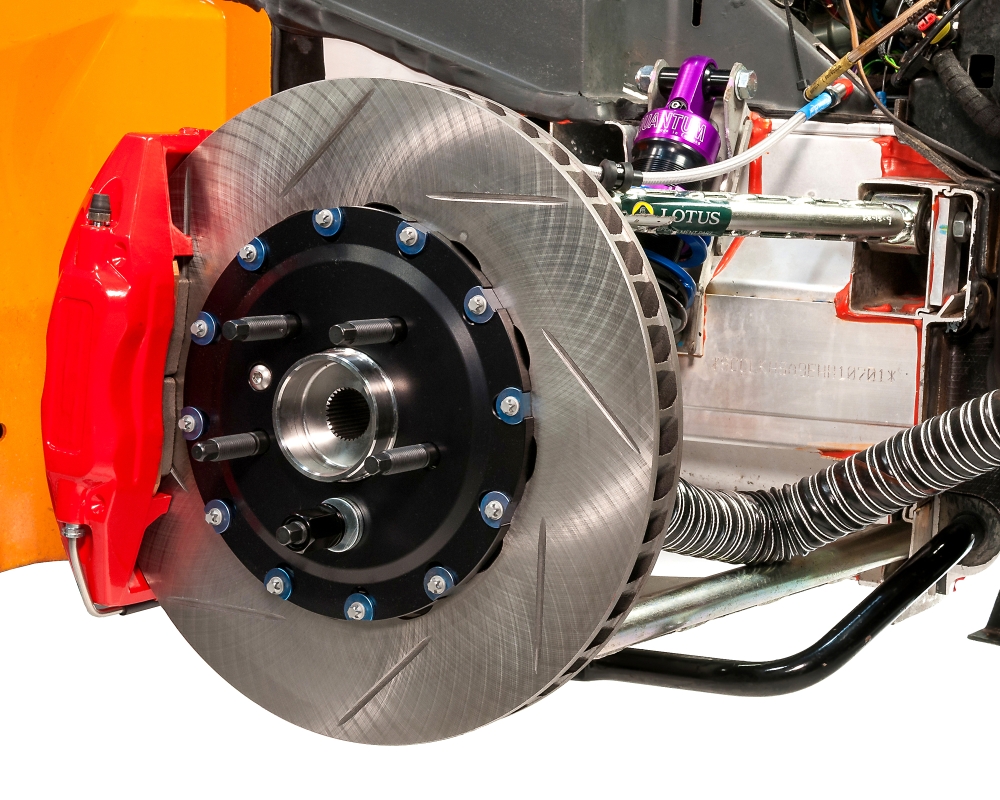

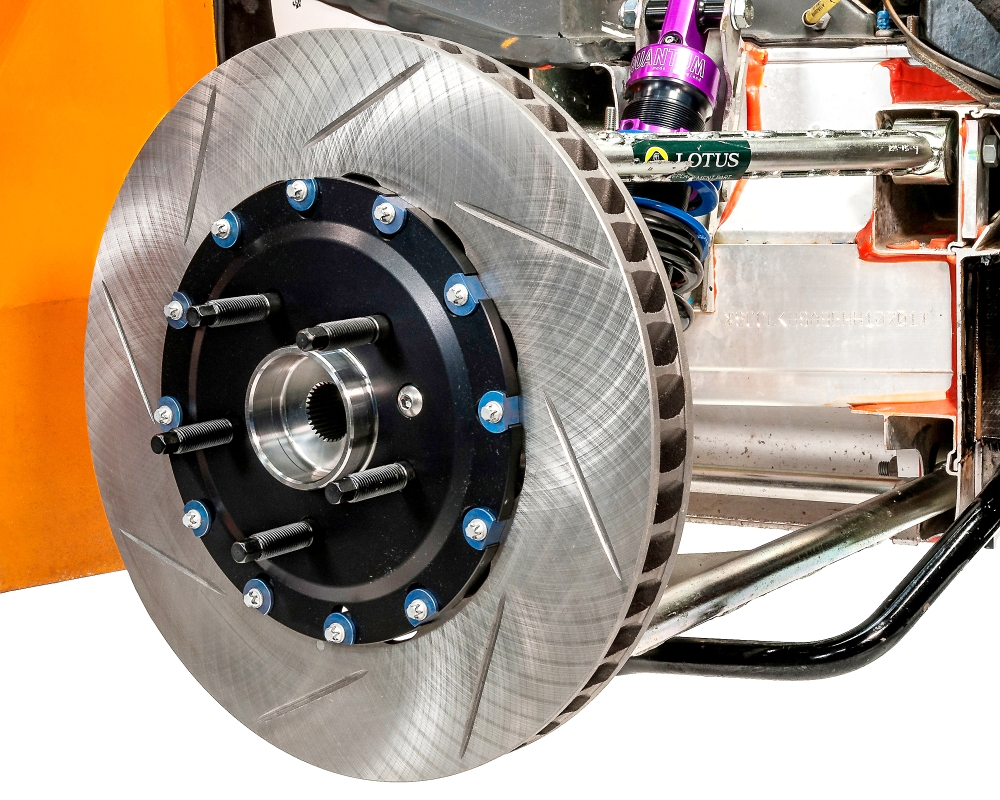

The original Lotus brake caliper can still be used along with the original brake pads.
Our Race specification Float in the Bell Brake Disc Bells are ideal for racing applications and allow axial float and radial heat expansion of the disc.
Radial float allows differential expansion of disc and bell thus reducing stresses in the disc and minimising disc cracking and distortion.
The idea of axial float is to compensate for a certain amount of stub axle / upright flex by allowing the disc to take up its ideal position within the range of float thus avoiding "knockback" of the caliper pistons.
The amount of axial float depends on the application; we have found that for the later Lotus application with minimal disc movement relative to the caliper the amount of float need only be around 0.15-0.2mm.
Our floating Disc Bells are the pinnacle, made from Aircraft specification certificated 7075 aluminium, Black Hard anodised for the ultimate in corrosion and wear resistance.
We use the highest quality Titanium for the 12 Disc-Bell bobbins, these are then anodised to reduce the galling that can be caused by constant movement and expansion between the Bell and Disc Bobbin.
The Special E Torx bolts and High Temperature Locknuts we use are Geomet coated for corrosion resistance.
Made at the same UK foundry as used by AP Racing and other top specification brake disc manufacturers.
Same grade of Steel used but ours are made from new casting moulds so the internals line up perfectly.
After heat treatment the Discs are precision ground perfectly flat and dynamically balanced.
These modifications assist by keeping the overall weight down whilst improving heat dissipation and air flow through the disc rotor.
Although these are less expensive than AP or Alcon we offer the same warranty.
Dimensions ; 343mm x 32mm x 200mm PCD
Supplied in pairs (2 Discs and Bells).
This fits the following models:
- V6 EXIGE / ROADSTER & CUP
